Mission LX DAC

På lager
kr 5 995

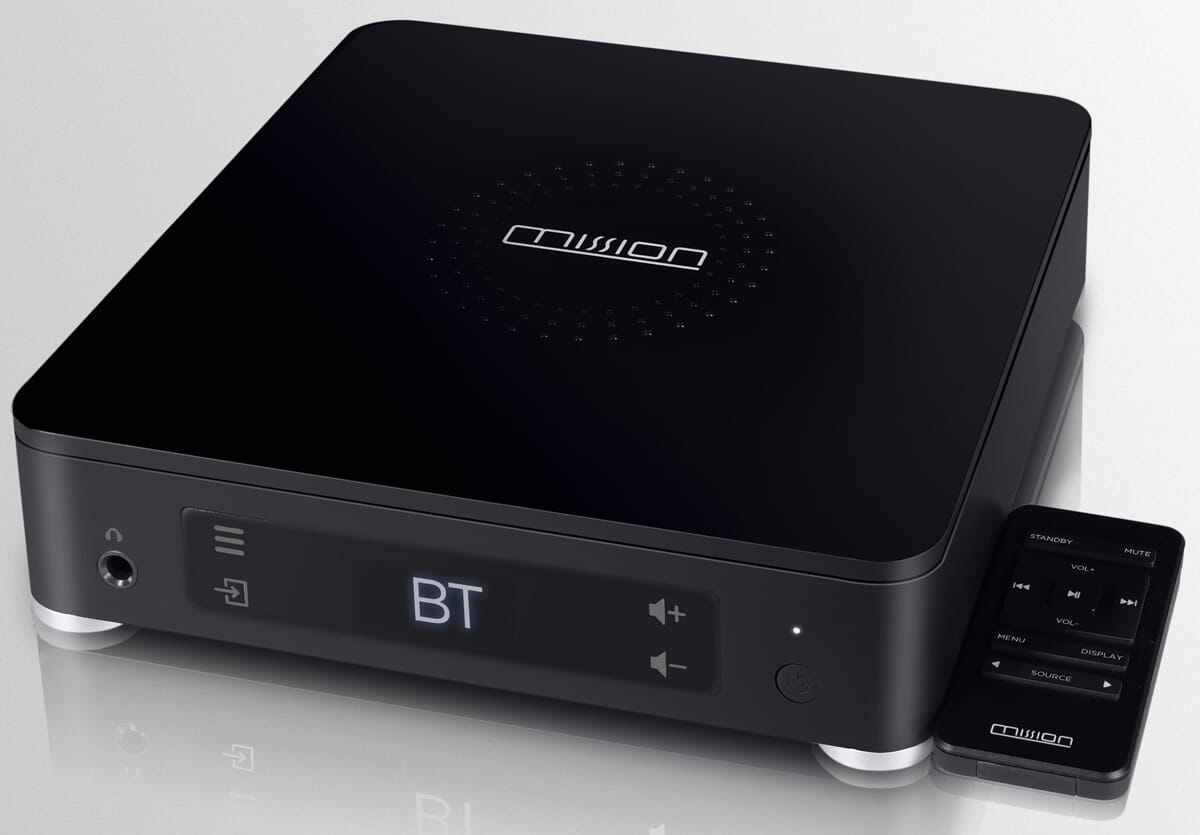

Mission LX DAC er en aldri så liten tusenkunstner av et produkt. Først og fremst er den en veldig god DAC med både USB, HDMI ARC, coax og optisk digital inn, men den har også hodetelefonforsterker og forforsterker av god kvalitet samt analog RCA inn og bluetooth streaming.

Selve produktet er designet av Mission sitt søsterfirma Audiolab, som i en årrekke  har laget Englands mest softe DAC (Audiolab M-DAC). LX DAC har dog en god del mer fuksjonalitet samtidig som den er mer prisgunstig enn Audiolab sine produkter. Et skikkelig BEST BUY-produkt med klassisk; fyldig, smooth og refinert britisk klangbalanse kombinert med glimrende design og funksjonalitet!


Informasjon fra produsent

The Mission LX CONNECT DAC is a stand-alone digital-to-analogue converter, pre-amp and headphone amplifier, derived from the award-winning Mission LX CONNECT wireless speaker system. It fuses the Mission mantra of innovative, attractive design and class-leading performance with the latest audio technology, to enhance your audio experience.


Central control console

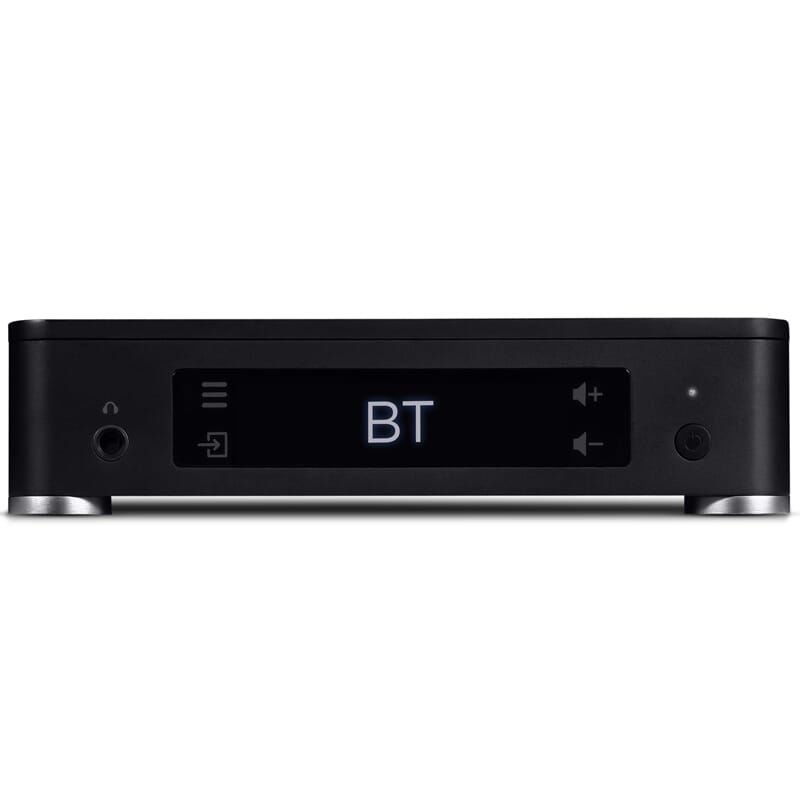

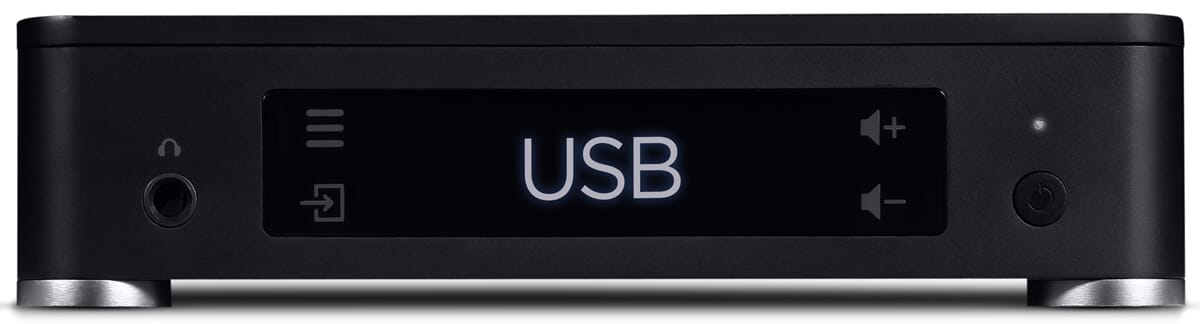

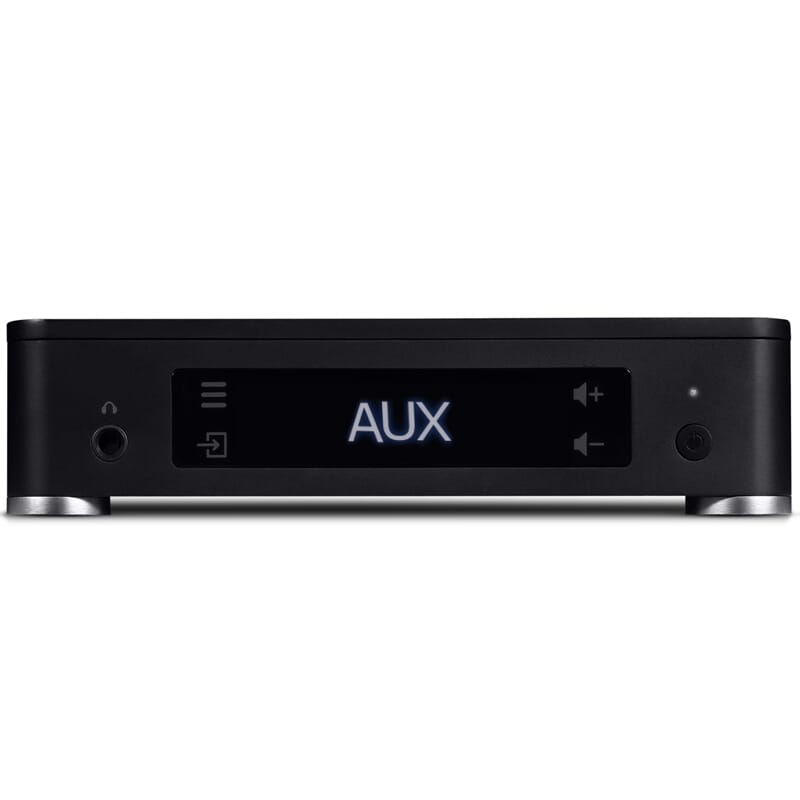

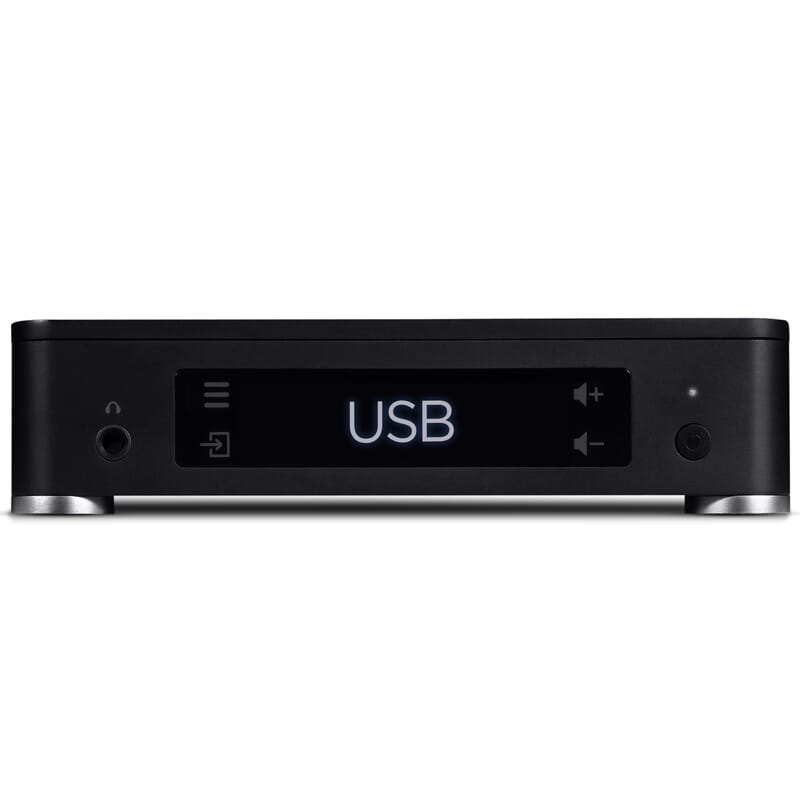

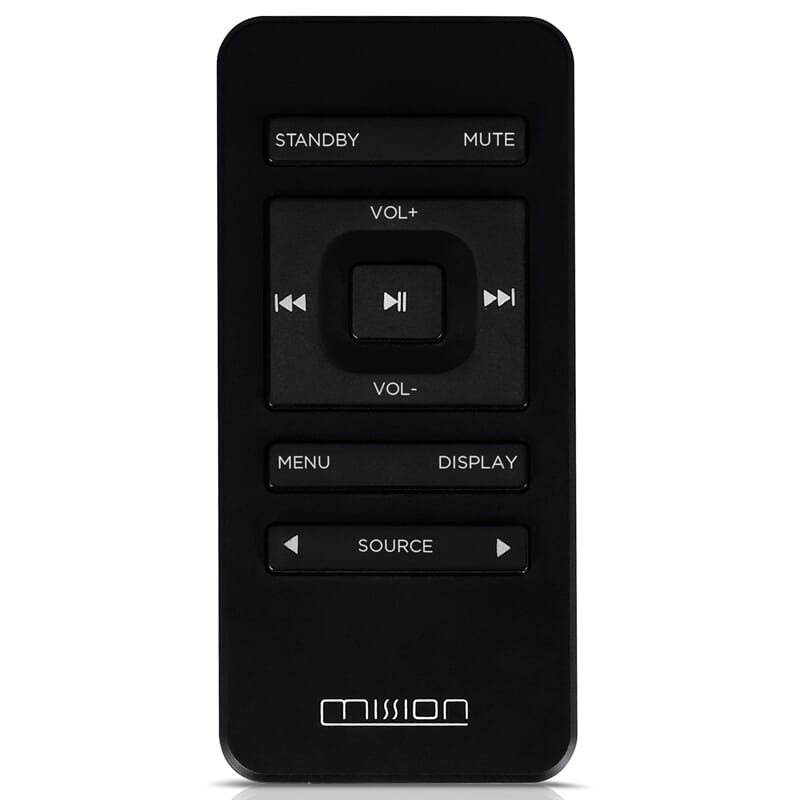

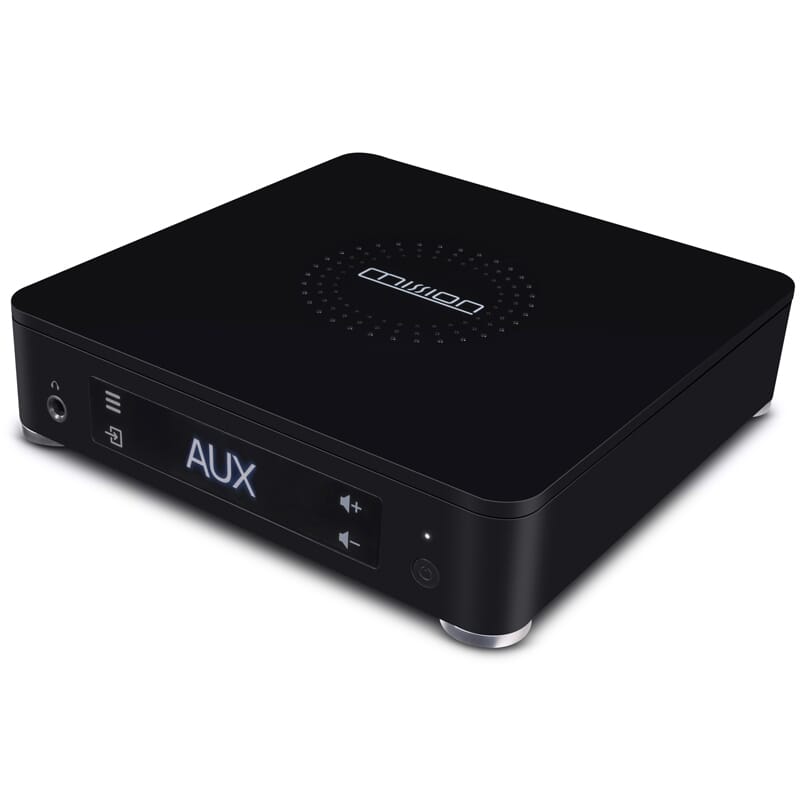

Designed to function as a central console for all your music sources, with analogue, optical and coax digital inputs, the Mission LX CONNECT DAC also features a dedicated HDMI ARC connection to bring high fidelity, true wireless performance for TV, movies and games. It is even equipped with a Bluetooth aptX receiver for wireless streaming of hi-resolution audio from tablets and smartphones. The LX CONNECT DAC is controlled gracefully via the touch-sensitive display, or for even more convenience you can use the included remote. The versatile connectivity options and compact form factor means it can be used as the all-encompassing DAC and pre-amp interface for any amplifier, active speakers, computer audio or head-fi system.


Audiolab expertise

Mission has utilised the audio electronics expertise of sister-company Audiolab, maker of many award-winning DAC and amplifier components, to create the LX CONNECT DAC interface.

It incorporates a high-performance DAC stage based around the ES9018K2M DAC chip, from the Sabre32 Reference family. For ultra-low noise performance and high dynamic range, that ES9018K2M chip is accompanied by proprietary circuitry to make the most of ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator.


Headphone amp

The LX CONNECT DAC supports hi-res PCM files up to 32-bit/384kHz over USB and 24-bit/192kHz via the coaxial and optical inputs; DSD (up to DSD256) is also supported over USB. An RCA-stereo output is provided with fixed and variable output options, fed by a high-quality analogue stage.

A high-quality headphone amp is also included, again derived from Audiolab – with its current-feedback circuitry, excellent gain bandwidth and high slew rate, a dynamic and detailed performance with all manner of headphones is assured.

Roon tested

The Roon platform has become the standard-bearer for high-quality digital music management and streaming. The LX CONNECT DAC is officially ‘Roon Tested’, meaning it has been put through its paces rigorously by Roon and certified for use in a Roon audio environment – for example, when connected to a PC or Mac running Roon software.

As a standalone desktop DAC / headphone amp / pre-amp solution, there aren’t many single units that offer a performance and specification to match LX CONNECT DAC, in this price segment.

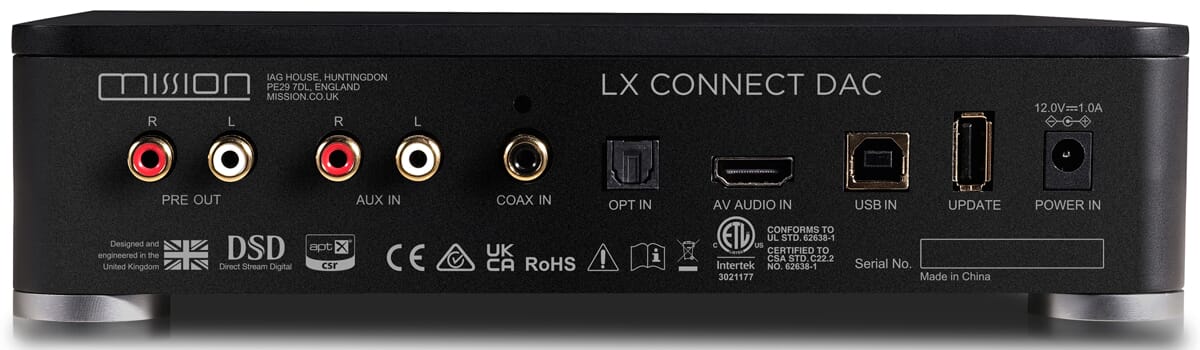

General Description Digital-to-Analogue Convertor, Headphone Amplifier and Pre-amp
Analogue Input RCA (AUX)
Digital Input OPT, COAX, PC USB, Bluetooth, AV Audio
Analogue Output RCA Pre Out

Pre Amplifier
Input Sensitivity 300mV (AUX IN, volume = MAX)
Input Impedance 13K (AUX IN)
Variable Output Voltage 0 – 3.2V
Output Impedance 100 ohm
Frequency Response 20Hz-20kHz (+/-0.3dB)
Signal-to-noise Ratio (S/N) >100dB (AUX IN, A-weighted)
  >110dB (digital Inputs, A-weighted)
Total Harmonic Distortion < 0.001% (digital sources)
  < 0.005% (analogue sources)
Sampling Rate 24bit - 192kHz (OPT, COAX)
  32bit - 384kHz (USB, PCM)
  2.8M for DSD64, 5.6M for DSD128, 11.2M for DSD256 (USB, DSD)
Digital Filters Fast Roll-off, Slow Roll-off, Minimum Phase

Height (on feet) 55mm
Width 225mm
Depth (with terminals) 231mm
Outer Packaging 418 x 280 x 85mm
Net Weight 1.75kg
Finish Black
Power Requirements Adapter - Input: 100-240Vac (50/60Hz) Output: 12V 1A
