Luxman D-07X

Varenr.
980011409
Enhet
stk
Lagerstatus:
Lager
Innkommende
Pris
kr 129 995

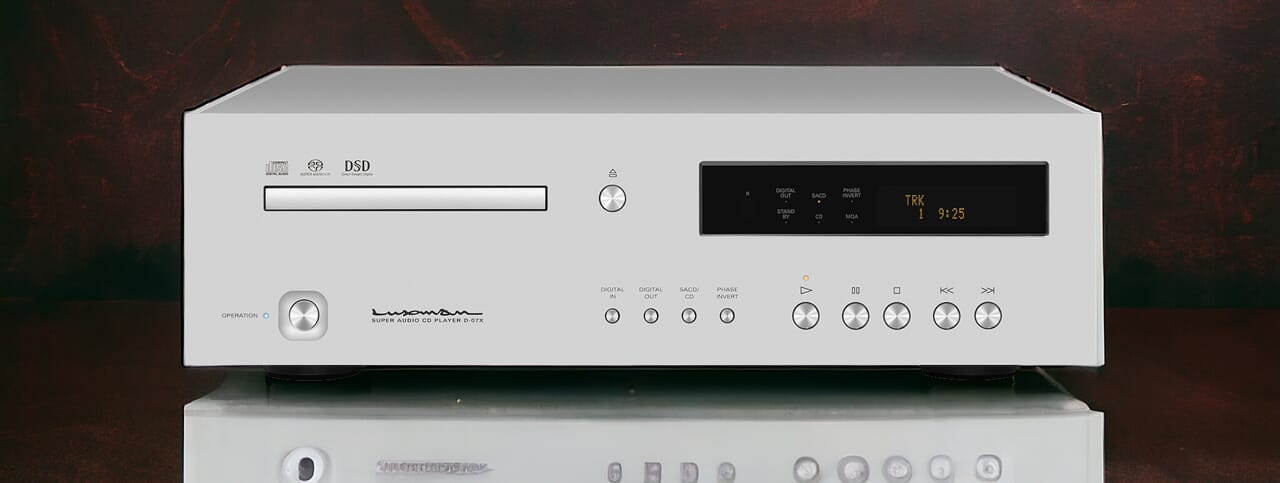

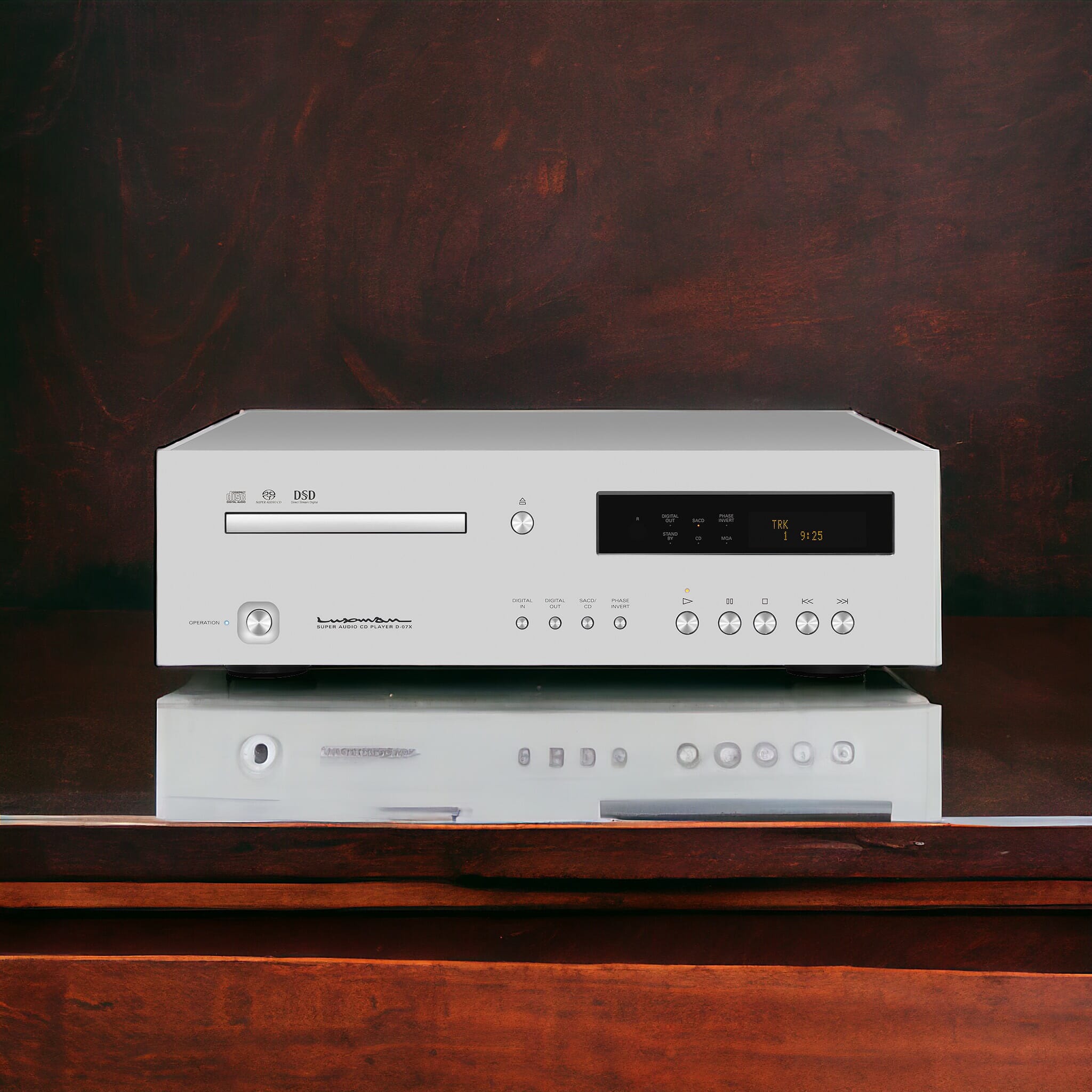

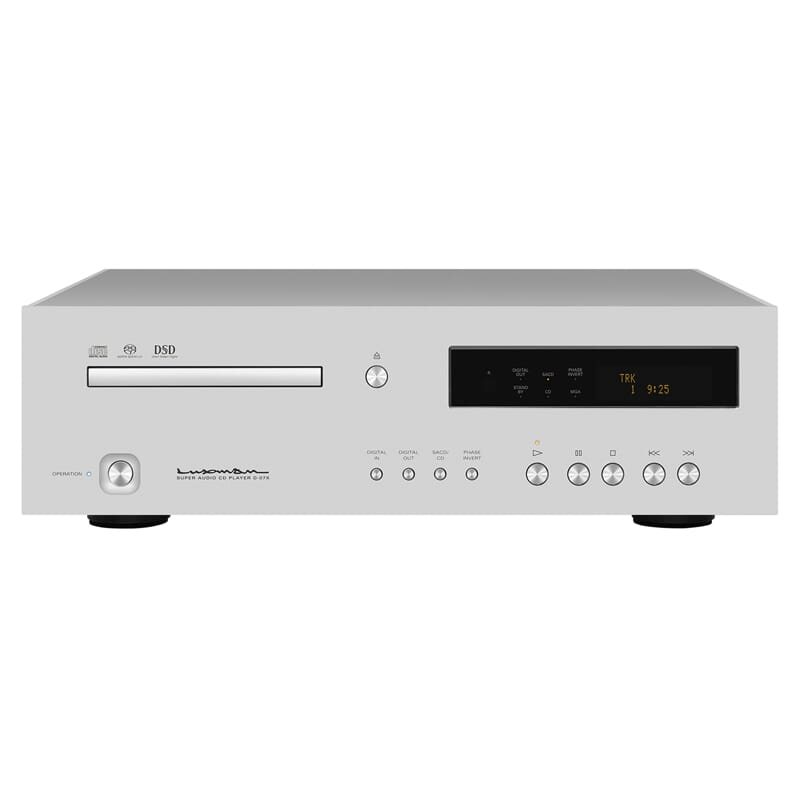

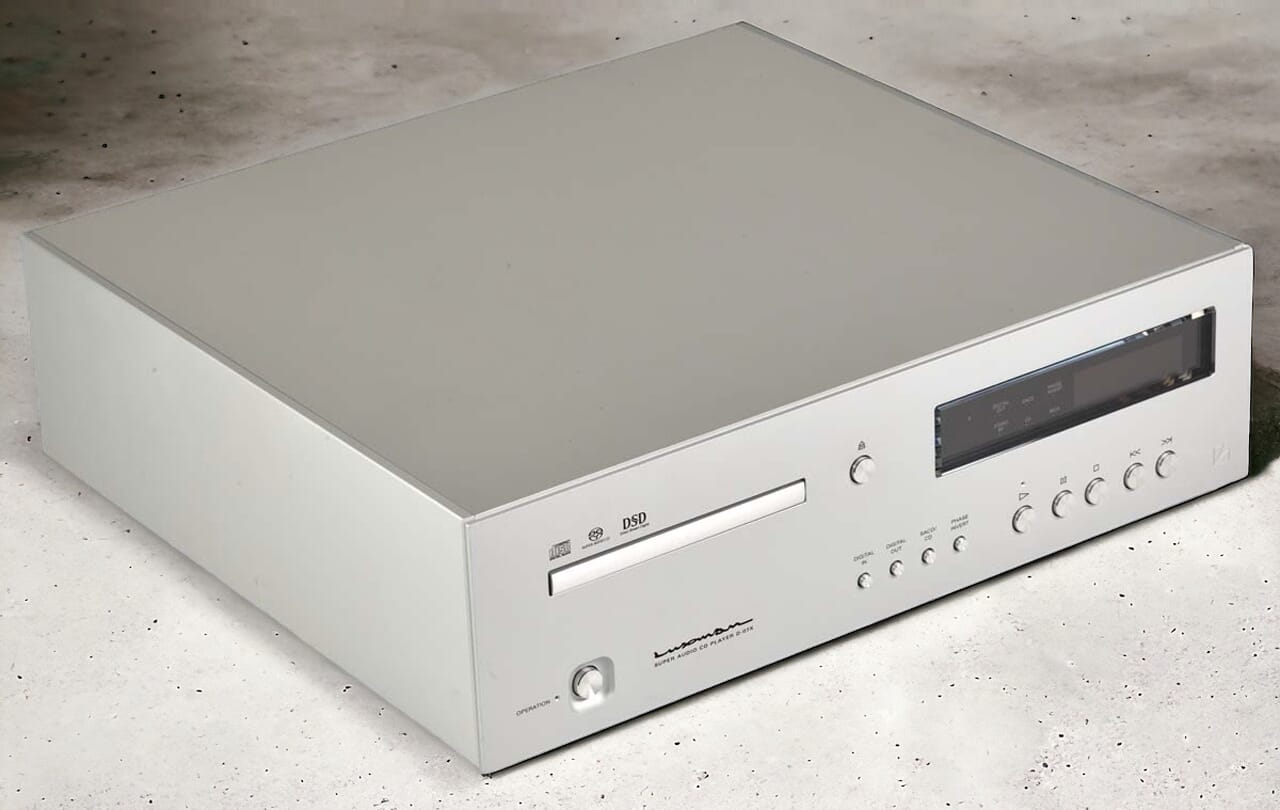

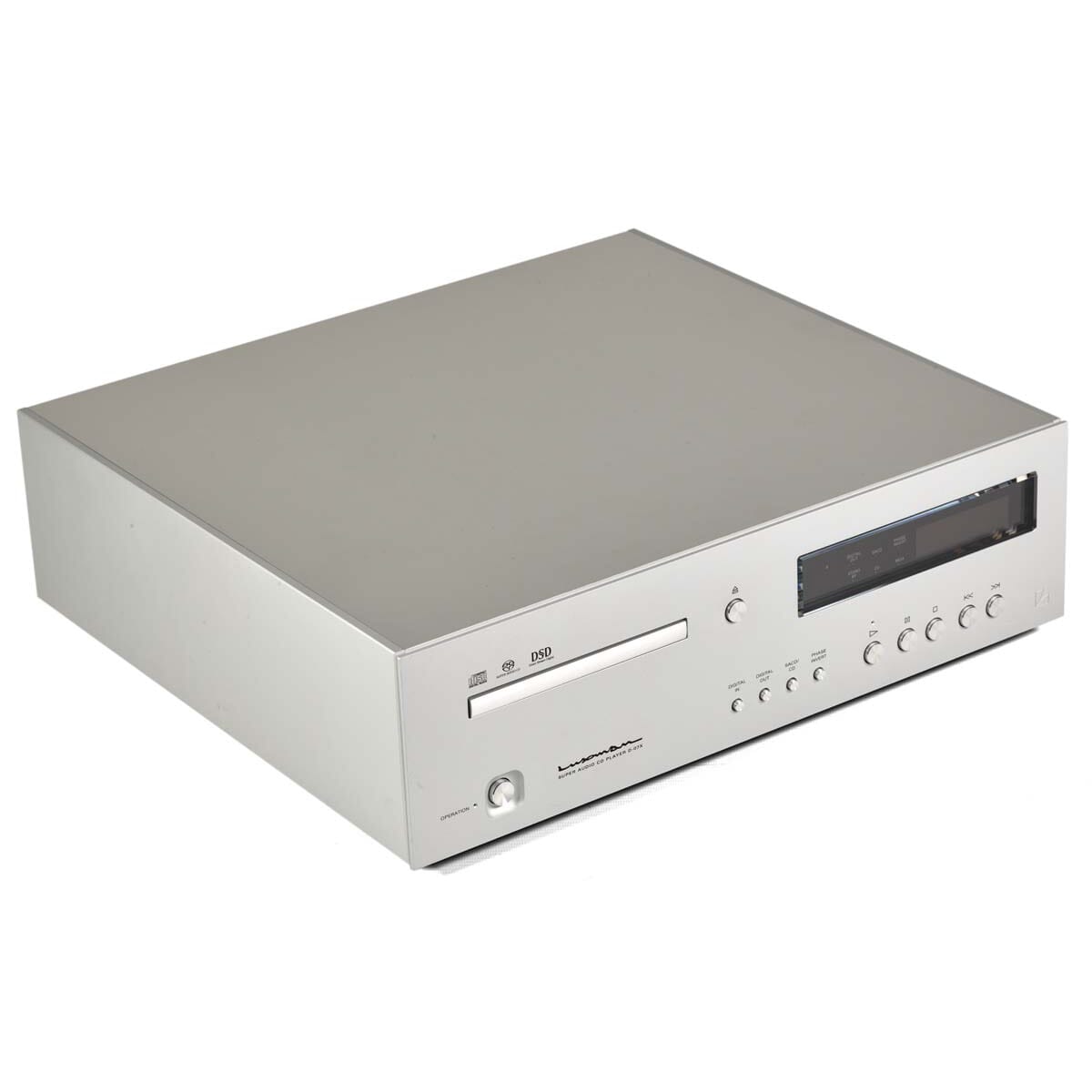

Luxman D-07X er Luxmans nest beste CD-/SACD spiller og DAC. En helt fantastisk spiller som både ser vanvittig påkostet ut og som lyder helt himmelsk. Klassisk Luxman-klang med fylde, storhet og detaljering.

D-07X bygger videre på suksessen til D-10X med luksuriøs design og imponerende ytelse. Denne digitale mediaspilleren leverer en overveldende lydopplevelse og formidler musikkens stemning og følelse på enestående vis. Som i alle Luxman sine produkter er kvaliteten bokstavelig talt til å ta og føle på. Egenvekten på 17kg vitner om at her er det ikke spart på verken strømforsyning, resonansdemping eller byggekvalitet i kabinettet. Selve CD-mekanismen beveger seg lydløst og elegant, og alle knapper og brytere gir en taktil kvalitetsfølelse som man aldri vil gå lei. :-)



Lydmessig er D-07X et klassisk Luxman-produkt med en varme, fylde og timber som flatterer all slags musikk. Lydbildet er detaljert og oppløst, men det er kroppen og følelsen i musikken som er det aller viktigste. "You should be able to listen to a Luxman system for hours and hours without getting fatigued." - skriver Luxman på sine hjemmesider. Vi er helt enig, og dette er noe de virkelig har fått til.



Informasjon fra produsent:

Advanced DAC circuitry, reproducing digital media with excellent sound quality

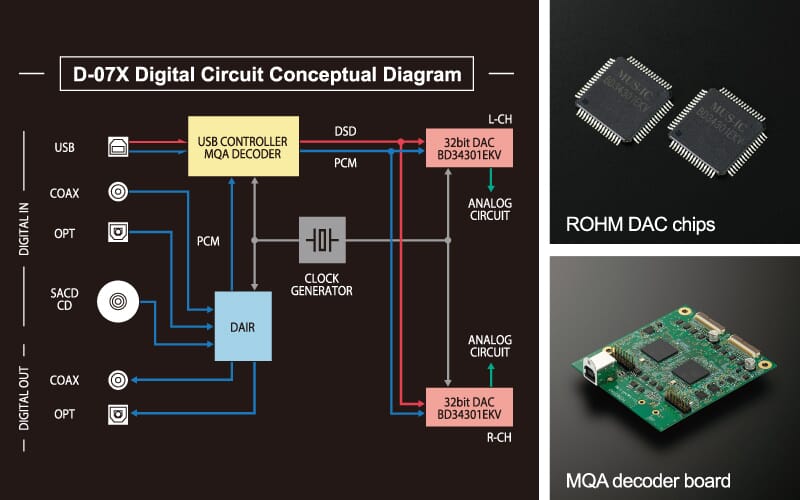

Following standards set by our D-10X flagship model, high-end BD34301EKV DAC chips manufactured by Rohm Co., Ltd. in dual monaural configuration lie at the core of the digital circuitry that processes various digital media from discs, such as CDs and SACDs, to the latest high resolution audio files with exceptional quality. Over a USB input from a PC, Mac, NAS for audio, etc., the D-07X supports a wide range of format encoding up to PCM768kHz/32 bit and DSD22.4MHz. Bulk Pet transfer, which equalizes transmission load, can also be selected by using our dedicated driver software. Furthermore, for the popular high-quality format MQA (MQA-CD/MQA file), which expands the field of optical discs, streaming USB, COAX, and optical. The clocking system is designed to support accurate digital signal processing and is equipped with two high-precision, low-jitter, ultra-low phase noise modules that reduce noise near the oscillation frequency to a minimum. There is also a built-in, 2-mode analog FIR filter that allows you to select your preferred sound quality when playing SACD or DSD files.

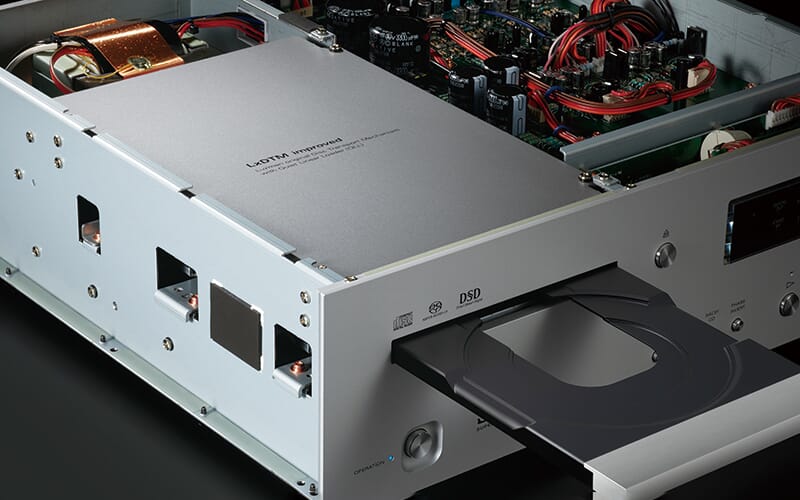

Highly robust LxDTM-i drive mechanism

The D-07X employs a left-side mechanical layout with an asymmetric configuration that realizes the shortest and ideal audio signal path and affords space for high quality analog circuitry. The disc drive section that supports CD and SACD playback is based on our original, highly robust LxDTM mechanism, which features a robust box structure that covers the entire mechanism with a side frame and top plate. Our LxDTM-i* system has evolved into an integrated structure that firmly blocks external vibration by being mounted directly onto the strong chassis side panel, achieving high precision and stable signal reading performance, comparable to our D-10X flagship model. The disc tray is made of die-cast aluminum, eliminating unnecessary vibration and resonance effects on the loader mechanism and enabling precise and smooth loading operation.

*LxDTM-i is an abbreviation for Luxman original Disc Transport Mechanism-improved, which realizes stable signal reading and mechanical integrity.

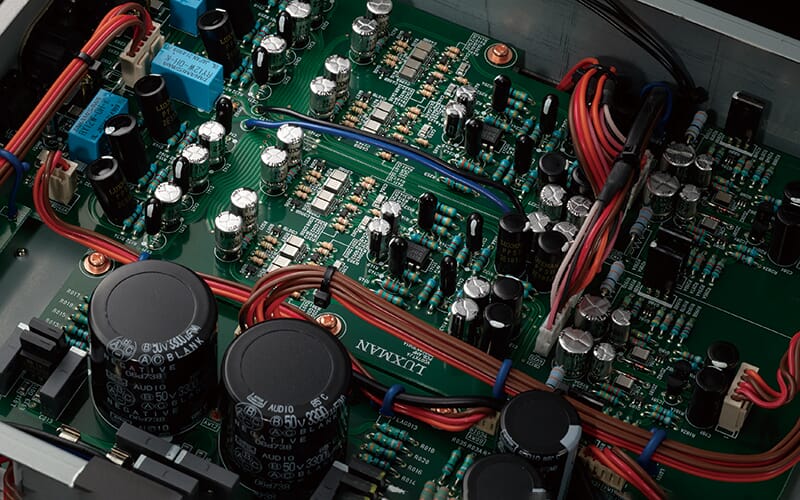

Newly developed discrete buffer circuitry

As a component that handles digital sources, high-precision signal reading by the drive mechanism and advanced digital signal processing are very important, but it goes without saying that the high performance analog output circuitry which determines the final audio quality is the most important factor in realizing that deep musical expression expected from high-end components designed by LUXMAN. The D-07X has a newly developed I/V conversion system that receives the differential outputs of the paired BD34301EKV DAC chips, operating in monaural mode, and feeds four discrete, perfectly matched amplifier modules. High-quality buffer circuitry lowers the impedance of the output signal. The unit powerfully drives any integrated amplifier or control amplifier that would be the next stage component. Out-of-audible-range filtering, which is essential for digital players, is performed in the buffer stage instead of having an independent LPF stage, enabling the reproduction of natural and smooth analog waveforms, resulting in higher clarity and more immediate sound quality.

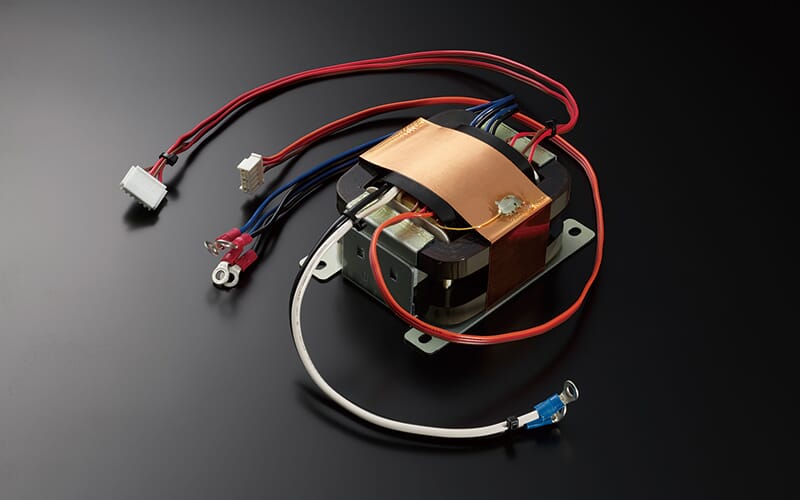

Large-capacity power supply

The D-07X’s power transformer capacity has been increased by 50% compared to our D-06u model. Large capacity filter capacitors and independent regulator blocks have been installed for each circuit to develop a highly stable overall power supply environment traditional to LUXMAN. Again, clean and stable power has been achieved.



Discerning original technologies and construction

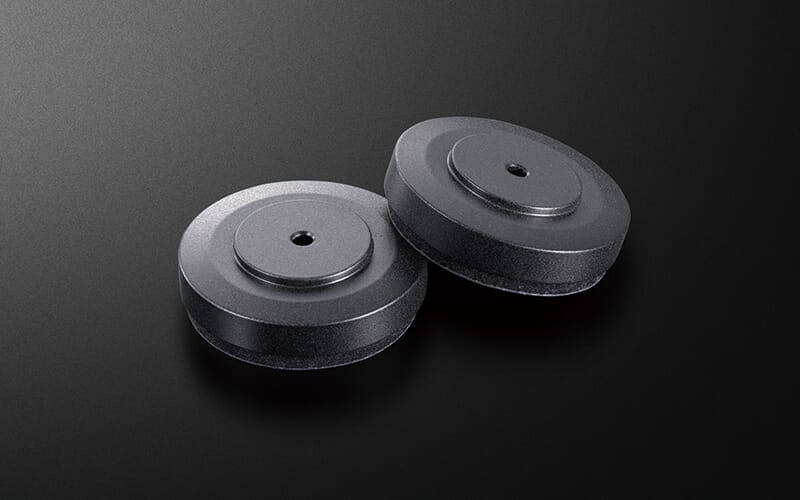

The D-07X is housed in a shielded chassis structure, insulating its various signal paths from interference and digital noise. The density gradient of its cast iron legs, firmly bearing the weight of the main body, protect delicate musical signals from external vibrations transmitted through the supporting surface. Internal damping countermeasures eliminate unnecessary vibrations generated within the unit itself.




Abundant input / output terminals

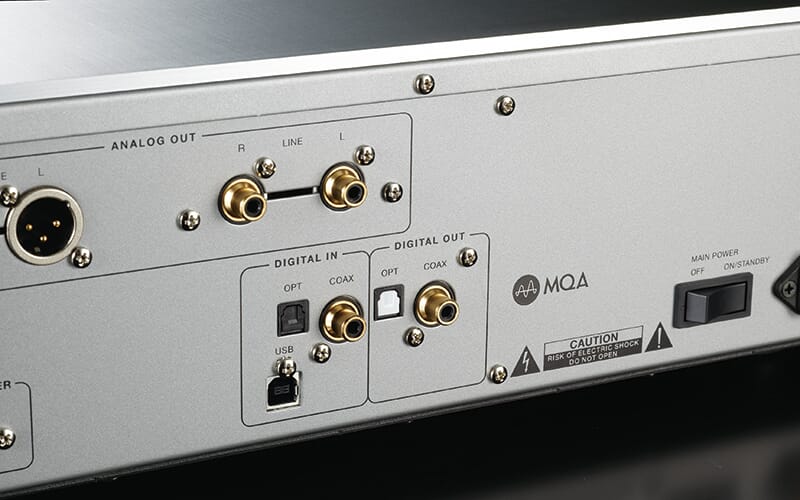

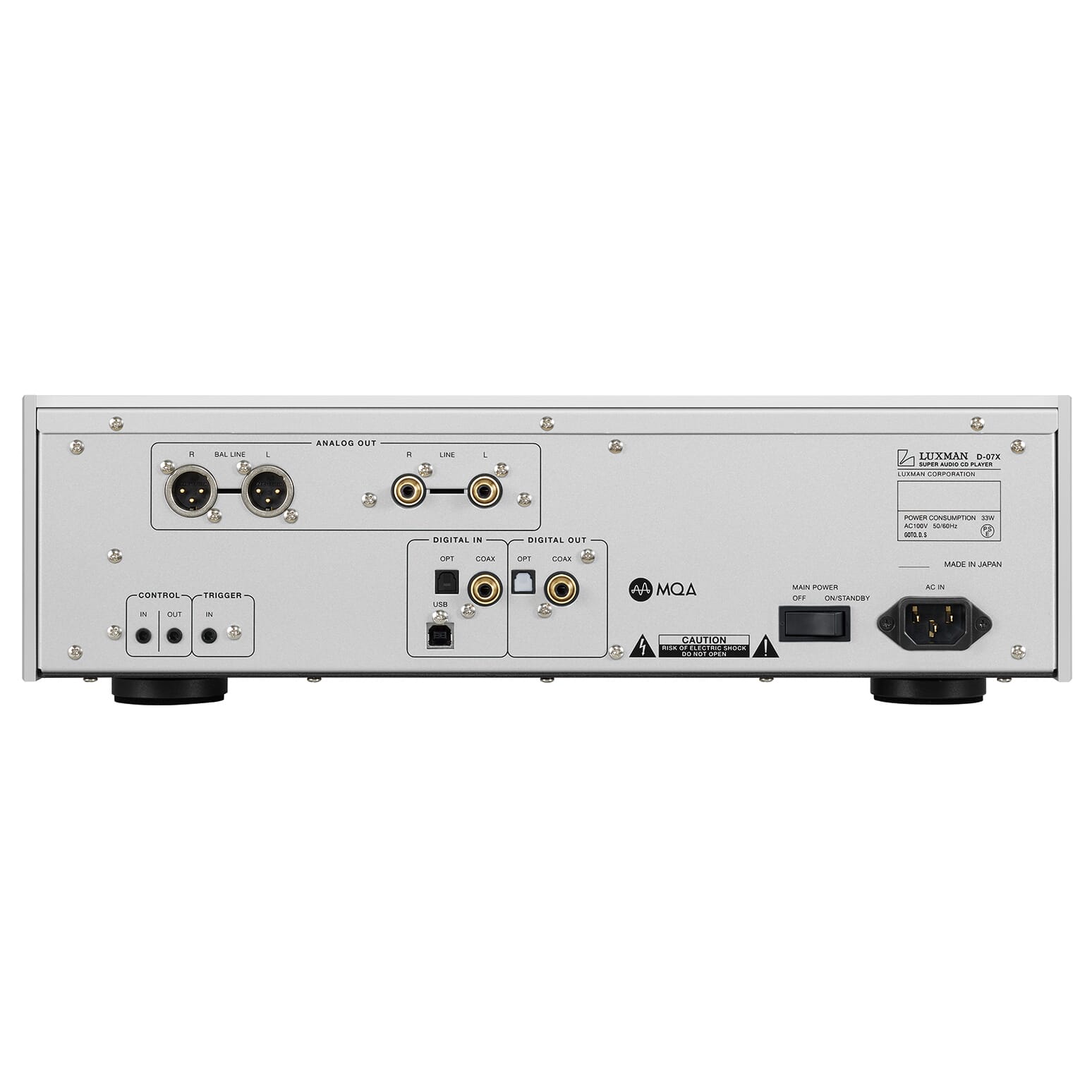

The analog outputs are equipped with both 32mm pitch, gold-plated RCA terminals and newly adopted, Neutrik shielded XLR terminals. Abundant digital connectivity features a USB terminal that supports PCM/DSD input, with coaxial and optical input terminals that support PCM formats up to 192kHz/24bit, and coaxail and optical output terminals.




External interlocking terminal to expand the function

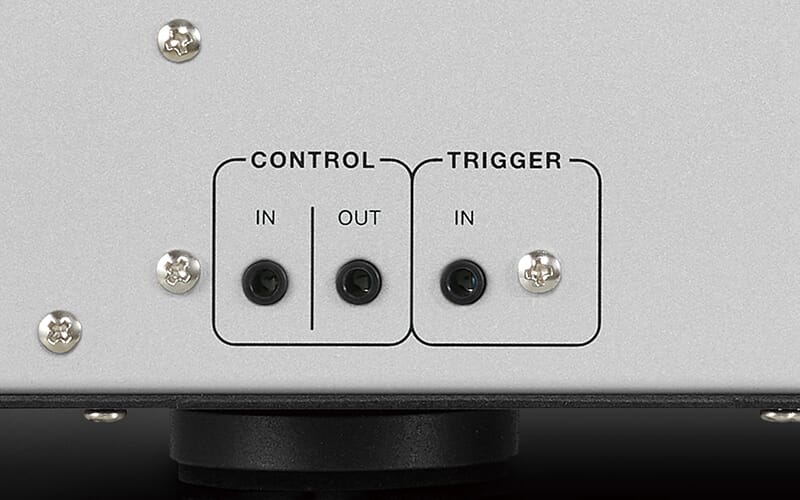

The D-07X is newly equipped with trigger input/output terminals for linking remote contrl signals between corresponding LUXMAN products.

*Connection cable is not included. Please source a 3.5mm monaural jack cable. We hope to develop control terminal support via wireless remote operation as an option in the future.

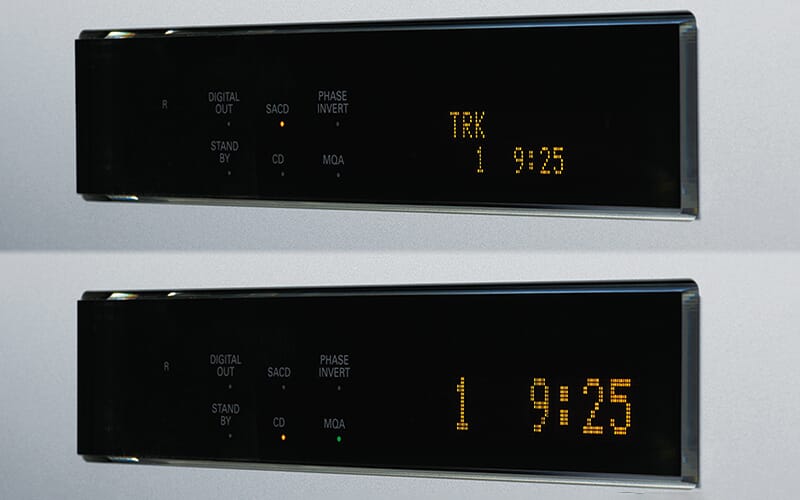

Display with excellent visibility

The FL display with excellent visibility that shines on the delicate panel of blaster white finish is equipped with a 4x zoom display mode that is easy to see even from a distance. When playing the MQA format, the decoding status (Studio: Blue, Authentic: Green, Renderer: Magenta) is displayed by a three-color LED indicator.



Spesifikasjoner:

Supported discsm SACD, CD (CD-R, CD-RW, MQA-CD)
Supported sampling
frequencies
USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Analog output voltage /
impedance
Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
For SACD / DSD : 2.3 V
Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB)
SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total harmonic distortion CD : 0.0016 %, SACD : 0.0007 %, USB : 0.001 %
S/N ratio (IHF-A) CD : 122 dB, SACD : 125 dB, USB : 122 dB
D/A converter ROHM BD34301EKV (monaural mode) x 2
Power supply 230 V~(50 Hz) / 115 V~ (60 Hz)
Power consumption 37W
Dimensions 440(W) x 132(H) x 410(D) mm
front side knob of 2 mm and rear side terminal of 8 mm included in depth
Net weight 17.0 kg
Accessories Remote control (RD-29), Power cable
