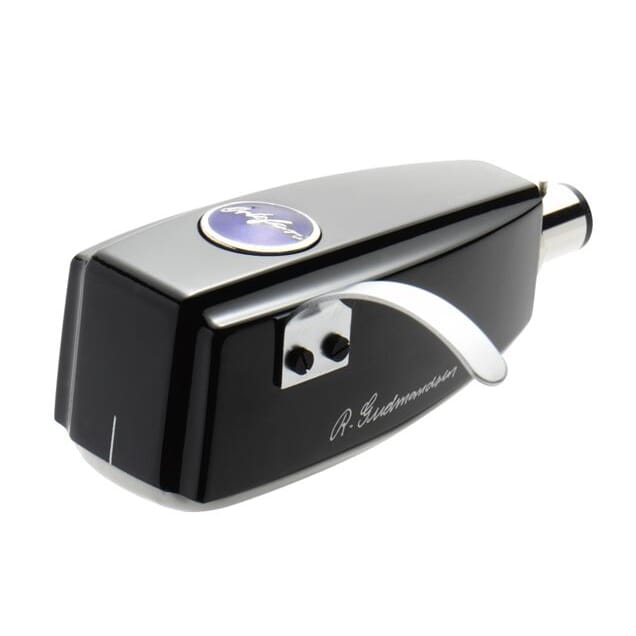

Ortofon SPU Meister Silver G MKII

Varenr.
980010044
Enhet
stk
Lagerstatus:
Lager
Innkommende
Pris
kr 23 990

Ortofon SPU Meister Silver G MKII er en klassisk SPU-pickup hvor selve viklingen er laget av ektremt rent sølv for ekstrem oppløsning og dynamikk.

Informasjon fra produsent:

The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.

The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.

The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.

Spesifikasjoner:

Output voltage at 1000 Hz 5cm/sec – 0,3 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 20 dB
Channel separation at 15 kHz > 10 dB
Frequency response 20 – 20 kHz +2/-1 dB
Tracking ability at 315 Hz at recommended tracking force *) > 70 μm
Compliance, dynamic, lateral – 8 μm/mN
Stylus type – Nude elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 3.0-5.0 g (30-50 mN)
Tracking force recommended – 4.00 g (40 mN)
Tracking angle – 20º
Internal impedance, DC resistance – 3 ohm
Recommended load impedance > 10 ohm
Coilwire material – Silver, 6-nines
Cartridge body material – Ground wood and resin composite
Cartridge colour – Shiny black
Cartridge Weight – 30 gram

*) Typical value

EAN
5705796240269
