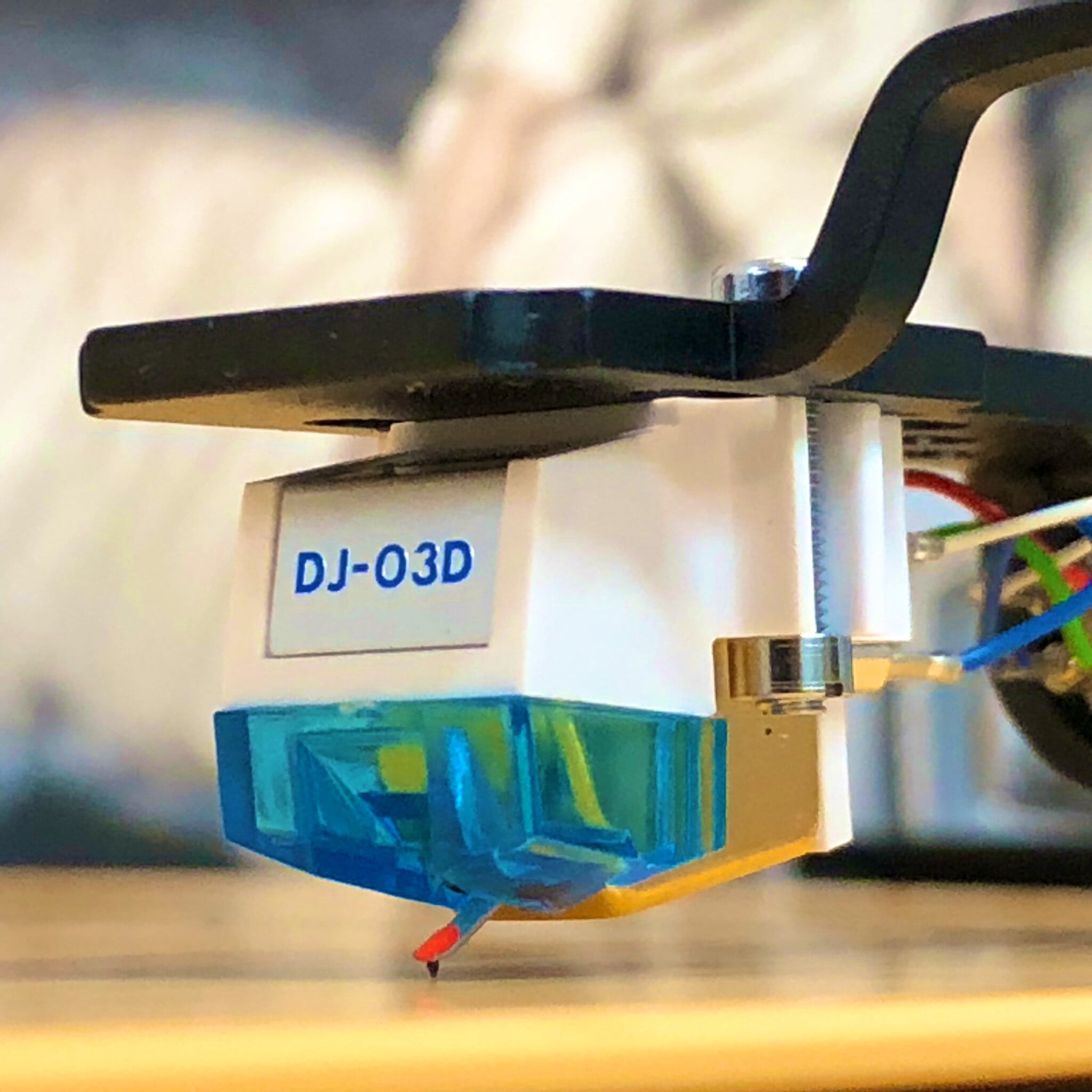

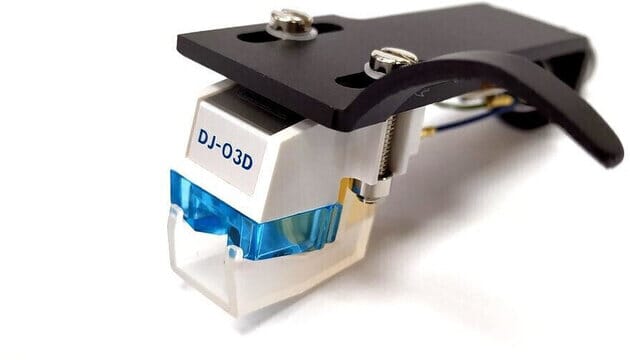

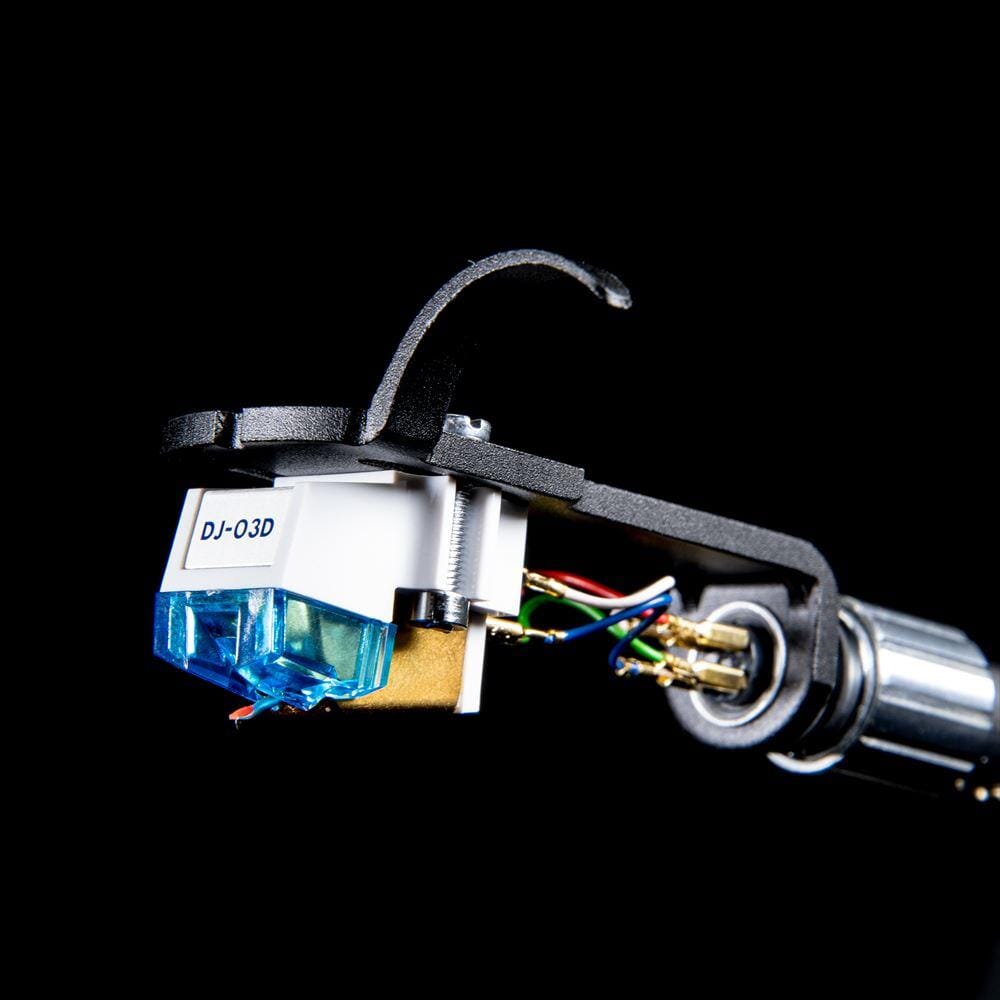

Nagaoka DJ-03HD pickup m/SME headshell

På lager
kr 2 295

Nagaoka DJ-03HD pickup m/SME headshell Precise DJ cartridge mounted on a headshell from the Japanese esteemed manufacturer NAGAOKA.


Thanks to the clever and high-quality construction, including the materials used, it is one of the highest quality transmissions for DJ use in general, still at a very competitive price.

Thanks to the range of stylus pressure, this pickup can also be used for backspin or lighter scratching, all in the quality of expensive listening HIFI cartridges with a warm and clean performance.

Moving Iron "MI" system can be connected to preamplifiers with MM system. Replaceable tip is a matter of course.

A high-quality conical diamond tip has a decent lifespan even with a higher load on the stylus where the range is possible from 3 to 5 grams.

Nagaoka is one of the leading manufacturers, which also produces  for other brands. Nagaoka use their patents and inventions and therefore these products are exceptional on the market with their specific soft and warm sound.



Type: Moving Magnet (MM)

Principle: Nagaoka MI technology® MI (Moving Iron)

Canteliver: aluminum alloy

Installation: 1/2 ″ mounting

Tip: Superfine polished conical stylus - conical diamond

Magnet: Powerful Samarium Cobalt Magnet - samarium with cobalt

Output voltage: 6mV (5cm / SEC)

Frequency range: 20 Hz - 20 kHz

Channel balance: 1 kHz:> 2.0 dB

Crosstalk between channels: 1 kHz:> 22 dB

Impedance: 47 kΩ

Capacity: 100pF

Weight: 5.1 g (cartridge only)


Weight including headshell: 15,1 g

Recommended stylus pressure: 3 ~ 5g
