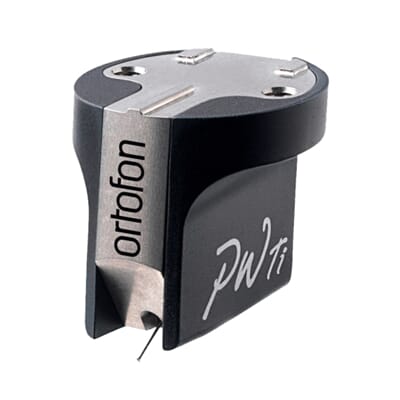

Ortofon MC Windfeld Ti

Varenr.
9051320
Enhet
stk
Lager
Innkommende
Pris
kr 49 995

Ortofon MC Windfeld Ti er den oppgraderte versjonen av en av våre favorittpickuper. Denne pickupen lar deg oppleve et livlig, dynamisk og åpent lydbilde, med en overbevisende mellomtone. MC Windfeld Ti tar hensyn til alle små detaljer i musikken og presenterer det på en delikat måte.

“Det er som å være i opptaksrommet og man hører både rommet og ikke minst hvert eneste instrument sin klang og kroppslighet. Herrejemini så deilig.”

-Stereopluss

Ortofon Windfeld test



Informasjon fra produsent:

The MC Windfeld was developed in 2008 using state-of-the-art technology.

This highly advanced design, which is the world’s most hi-tech analogue cartridge, may be seen as a tribute to Ortofon's departed engineer Per Windfeld, who had for more than 30 years been a feature of the high-end culture as the head of development behind amazing cartridges such as the Ortofon MC 20 Super, Concorde, MC Rohmann, MC Jubilee, Kontrapunkt Series, etc.

MC Windfeld is designed by a team headed by Mr.Windfeld's successor, Leif Johannsen, the Ortofon's Chief Officer of Acoustics and Technology and the cartridge bears Mr.Windfeld's name - his initials "PW" are inscribed in gold on the cartridge's side.

The Windfeld retains many of Per Windfeld's earlier design innovations, including Per Windfeld's patented Wide Range Damping (WRD) system, the ultra-fine polished version of extremely low mass, large-vertical-contact Replicant 100 diamond, capable to extract musical information from the grooves with a greater degree of accuracy than any other kind of needle and a strong neodymium magnet system with a Field Stabilizing Element (FSE) located within the magnet system.

Spesifikasjoner:

Output voltage at 1000 Hz, 5cm/sec. – 0.2 mV Tracking force range  –  2.0-2.5 g (20-25 mN)
Channel balance at 1 kHz  –  0.5 dB Tracking force, recommended  –  2.3 g (23 mN)
Channel separation at 1 kHz  –  25 dB Tracking angle  –  23°
Channel separation at 15 kHz  –  20 dB Internal impedance, DC resistance  –  7 Ohm
Frequency range at – 3dB  –  10 Hz – 50 kHz Recommended load impedance  –   > 10 Ohm
Frequency response  –  20 Hz – 20 kHz +2 dB/- 1 dB Coil wire material  –  Aucurum
Tracking ability at 315Hz at recommended tracking force  –  90 µm Cartridge body material  –  SLM Titanium and Stainless Steel
Compliance, dynamic, lateral  –  13 µm/mN Cartridge colour  –  Titanium/Black
Stylus type  –  Special polished Nude Ortofon Replicant 100 on Boron Cantilever Cartridge weight  –  11 g
Stylus tip radius  –  r/R 5/100 µm
