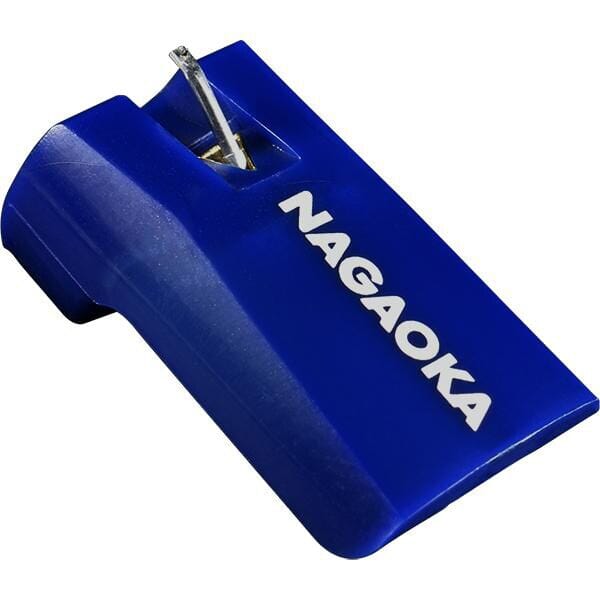

Original erstatningsstylus til Nagaoka JT-80LB
Nagaoka JT-80 Blue ble introdusert i 2020 for å feire Nagaoka sitt 80-års-jubileeum.
Den er innstegsmodellen i Jeweltone-serien, men den gir utrolig god valuta for pengene, men en stor, åpen og fyldig klang som er veldig lett å like.
Informasjon fra produsent:
The Nagaoka JT-80LB (Lapis Blue) cartridge with its shiny blue needle insert is the basic model of the series and features an aluminium needle carrier with a set diamond.
With its open, powerful sound, it offers exceptional value for money. The cartridge unfolds its full potential after an approx. 80-hour play-in period.
Tekniske data:
- Output voltage: 5.0mV（5cm/sec）
- Frequency response<: 20Hz ～ 20kHz
- Channel separation: 23dB(1kHz)
- Channel balance <1.5dB
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 100pF
- Cantilever: Aluminum alloy
- Stylus tip: 0.4×0.7mil
- Stylus pressure: 1.3 ～ 1.8g
- Cartridge weight: 6.9g
- Dynamic Compliance: 7.3×10-6cm/dyne

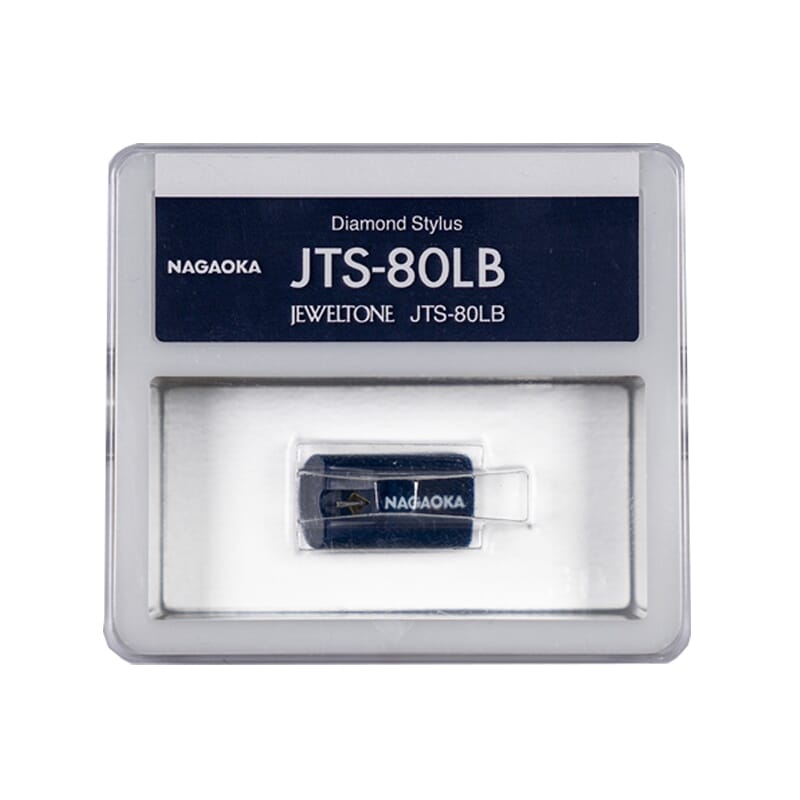

- Replacement Stylus：JTS-80BL
