Audiolab 8300CDQ-Sort

Varenr.: 980010682-sort
Enhet: stk
Lager: På lager

Pris: kr 16 495

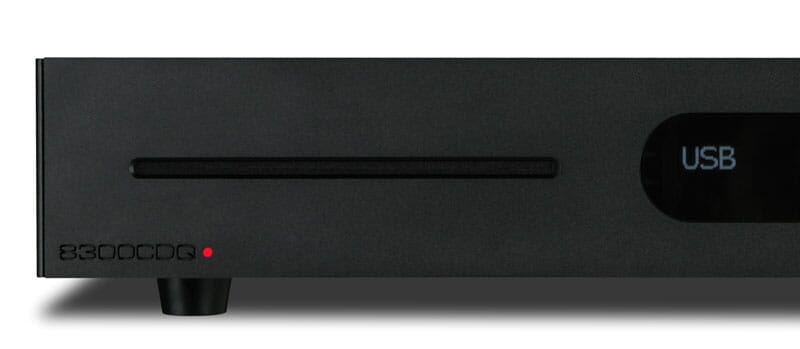

Audiolab 8300CDQ er en CD-spiller, DAC og høykvalitets forforsterker i ett produkt.

The Sound of Sience

The 8300CDQ adds further ﬂexibility by incorporating a dedicated direct-coupled headphone amp with current-feedback circuitry. Accessed via a front-mounted 6.35mm socket, its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types.

The ﬁnal key feature introduced in the 8300CDQ is decoding of MQA (Master Quality Authenticated). The brainchild of Meridian Audio co-founder Bob Stuart, MQA is a digital audio format designed for high-resolution music streaming and is available via subscription to Tidal’s ‘HiFi’ tier (among other sources). The 8300CDQ unpacks MQA data – received via the USB input – at the original ﬁle’s full resolution and passes the signal through its DAC and preamp stages, ready to feed a power amp or active speakers.

The new 8300CDQ has high-quality analogue preamp circuitry, coupled to three stereo pairs of line-level RCA inputs to connect analogue sources. The preamp circuitry is kept as simple as possible using high-quality components to maintain signal purity, with line input signals passing to a precision analogue volume stage. Much eﬀort has gone into the physical layout of the 8300CDQ’s circuitry, protecting the sensitive preamp section from noise interference.

CD-player / DAC / Preamplifier

The new 8300CDQ adds high-quality analogue preamp circuitry, coupled to three stereo pairs of line-level RCA inputs to connect analogue sources. The preamp circuitry is kept as simple as possible using high-quality components to maintain signal purity, with line input signals passing to a precision analogue volume stage. Much eﬀort has gone into the physical layout of the 8300CDQ’s circuitry, protecting the sensitive preamp section from noise interference.

MQA

Taking it to the next level the 8300CDQ now includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.

Spesifikasjoner

Finish	Fine Textured Aluminium (Black / Silver)
Display	POLED 128x64 pixels 2.7"
Standby Feature	Yes
12V Trigger	Yes
CD Mechanism	Slot-Loading
DSD Compatible	Yes (DSD64 / DSD128 / DSD256)
Disc Compatibility	CD/CDR
DAC	ESS Sabre32 9018 chip
Resolution	32 bits
Sampling Frequency	Optical,Coaxial, AES: 32kHz - 192kHz
	USB:32kHz - 384kHz(PCM) / DSD64, DSD128, DSD256
Maximum Sampling Frequency	Optical,Coaxial, AES: 192kHz
	USB: 384kHz (PCM) / 11.2M (DSD256)
Output Voltage	4.2Vrms ±0.1 (Balanced)
	2.1Vrms ±0.1 (Unbalanced)
Output Impedance	10Ω
Total Harmonic Distortion (THD)	<0.002% (1kHz, 0dB, 20Hz ~ 20kHz, A weighted)
Frequency Response	20Hz - 20kHz (± 0.2dB)
Signal to Noise Ratio (S/N)	<-100dB A Weighted (Balanced)
	<-98dB A Weighted (Unbalanced)
Dyanmic Range (A Weighted)	>100dB (Balanced)
	>98dB (Unbalanced)
Crosstalk (@1kHz)	<-130dB (Balanced)
	<-120dB (Unbalanced)
Standby Power Consumption	<0.5W
Power Requirements	240V ~ 50 - 60Hz
	230V ~ 50 - 60Hz
	115V ~ 50 - 60Hz
	100V ~ 50 - 60Hz
Dimension(mm) (W x H x D)	444 X 80 X 317
Carton size(mm) ( W X H X D)	500 x 140 x 455
Weight	6.0kg (Net)
	7.5kg (Gross)
